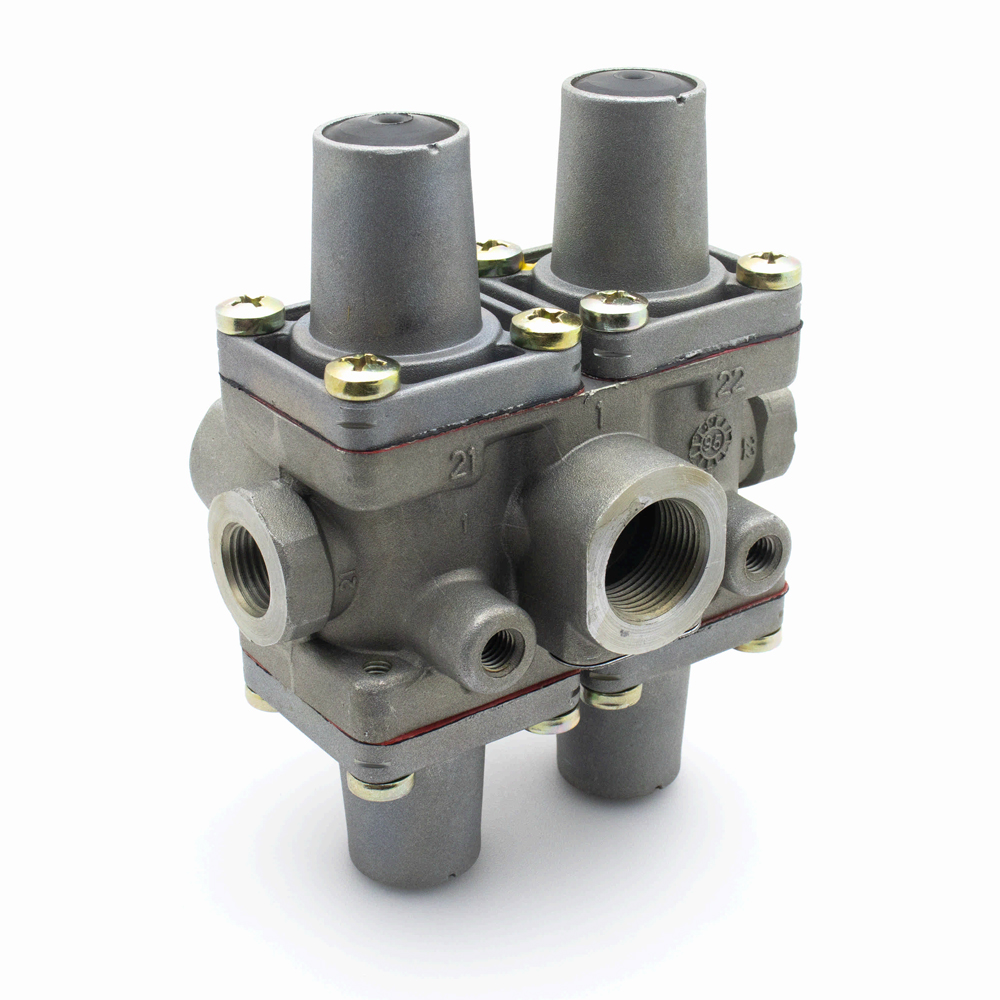

12 0110 004 – 4 – Circuit – Protection Valve

M16 x 1,5, M22 x 1,5, max. 20 bar, Po21: 6.5 bar, Po22: 6.5 bar, Po23: 6.5 bar, Po24: 6.5 bar, Pc21: 4.5 bar, Pc22: 4.5 bar, Pc23: 4.5 bar, Pc24: 4.5 bar

Replaces Wabco: 934 702 381 0

SKU: 12 0110 004 Category: Tags:

Product Details

Properties Data
Charging pressure 3.25 bar
Closing pressure dynamic 21 4.5 bar
Closing pressure dynamic 22 4.5 bar
Closing pressure dynamic 23 4.5 bar
Closing pressure dynamic 24 4.5 bar
Max. operating pressure 20.0 bar
Opening pressure 21 6.5 bar
Opening pressure 22 6.5 bar
Opening pressure 23 6.5 bar
Opening pressure 24 6.5 bar
Opening pressure circuit 1+2 6.5 + 6.5 bar
Port thread 1 M22 x 1.5
Port thread 21 M16 x 1.5
Port thread 22 M16 x 1.5
Port thread 23 M16 x 1.5
Port thread 24 M16 x 1.5
Port thread 4 M16 x 1.5
Pressure sensor No



Comparison Numbers

Replaces Referans No Alternative No
DAF 0271944
DAF 0271944A
DAF 0271944R
DAF 0384037
DAF 0384037A
DAF 0384037R
DAF 271944
DAF 271944A
DAF 271944R
DAF 384037
DAF 384037A
DAF 384037R
Scania 307605
VDL 40271944
VDL 0271944
Peterbilt S9347023810
Kenworth S9347023810
Leyland DAF 661690
Alexander Dennis AB9347023810
Meritor S9347023810
Neoplan 112230000
Neoplan 11018615
Replaces Wabco 934 702 381 0 9347023810



Application

Vehicle Brand Model, engine, gearbox, axle, cab
DAF F/N 500-3600 F 1000, F 1100, F 1300, F 1600, F 1700, F 1800, F 1900, F 2100, F 2300, F 2500, F 2700, F 2800, F 2900, F 3200, F 3300, F 3600, F 800, N 2800
DAF Bus tbd
Replaces

Wabco

OEM

934 702 381 0

Application

Multibrand

Aspatech New Code

12 0110 004

Aspatech Old Code

ASP.300.3810.00

Weight (g)

857.00

PU Weight

1.01 kg
