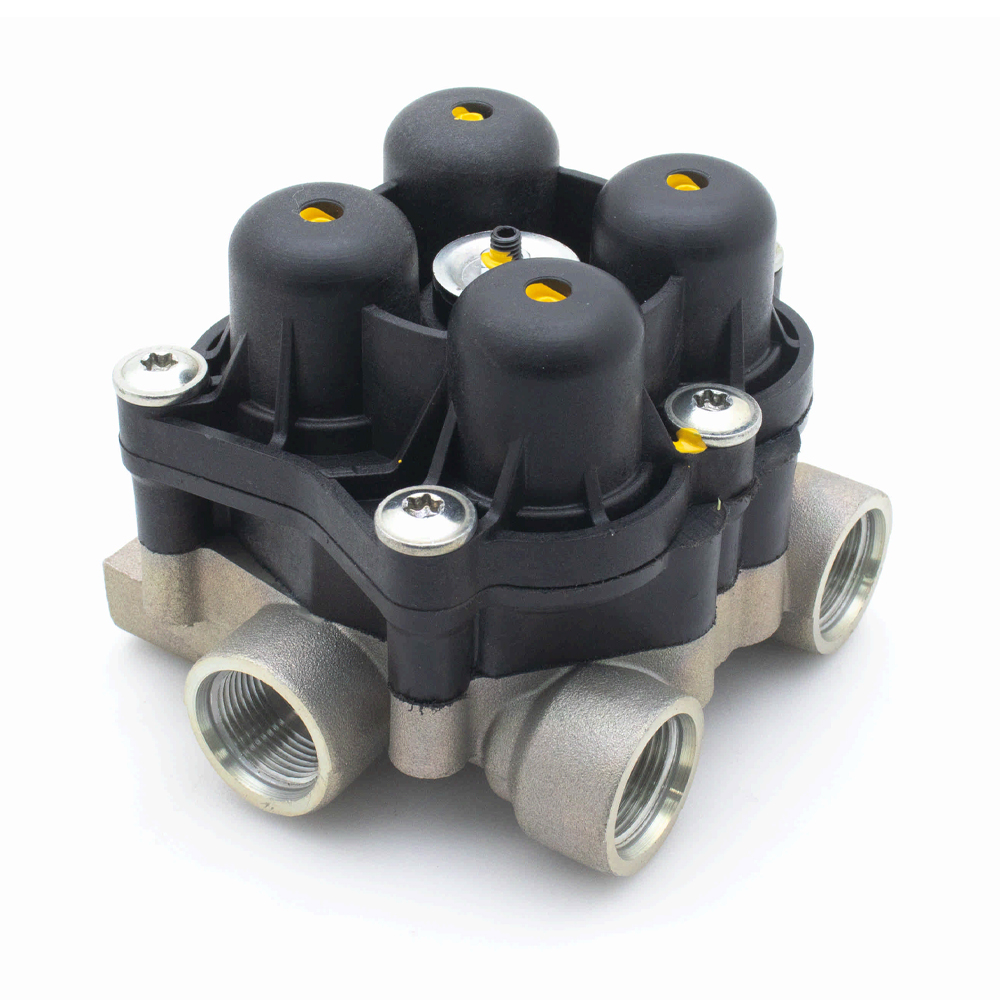

12 0110 007 – 4 – Circuit – Protection Valve

M22 x 1,5, max. 13 bar, Po21: 6.9 bar, Po22: 6.9 bar, Po23: 7 bar, Po24: 6.9 bar, Pc21: 4.5 bar, Pc22: 4.5 bar, Pc23: 4.5 bar, Pc24: 4.5 bar

Replaces Knorr: AE4609

SKU: 12 0110 007 Category: Tags:

Product Details

Properties Data
Air Inlet port(s) size Voss NG12 M22x1,5
Air Delivery port(s) size 21,22,23,24:
Voss NG12 M22x1,5
Circuit 1 Feedback with Bypass
Circuit 1 – Open/close pressure [bar] 6,9-0,3 / >=4,5
Circuit 1 – Pressure Limiting [bar] Not included
Circuit 2 Feedback with Bypass
Circuit 2 – Open/close pressure [bar] 6,9-0,3 / >=4,5
Circuit 2 – Pressure Limiting [bar] Not included
Circuit 3 Feedback with no Bypass
Circuit 3 – Open/close pressure [bar] 7,0-0,3 / >=4,5
Circuit 3 – Pressure Limiting [bar] Not included
Circuit 4 Feedback with no Bypass
Circuit 4 – Open/close pressure [bar] 6,9-0,3 / >=4,5
Circuit 4 – Pressure Limiting [bar] Not included
Bleed-back safety feature Controlled by Circuit 1
Circuits’ supply Internal series supply from
Circuits 1 and 2 to 3 and 4
With Electrical pressure sensing No



Comparison Numbers

Replaces Referans No Alternative No
MAN 64.521.516.001 64521516001
MAN 81.521.516.095 81521516095
MAN 81.521.516.098 81521516098
MAN 81.521.516.099 81521516099
MAN 81.521.516.105 81521516105
MAN 81.521.516.106 81521516106
MAN 81.521.519.095 81521519095
MAN 81.525.156.105 81525156105
VW 2V5 607 359 2V5607359
ZG ZG.50041-0008 ZG500410008
Knorr-Bremse II37460N00
Knorr-Bremse II37460
Replaces Knorr AE 4609 AE4609



Application

Vehicle Brand Model, engine, gearbox, axle, cab
MAN Chassis FOC, HOC
MAN CLA CLA 2007 – 2018
MAN Lion’s Lion’s City, Lion’s Classic, Lion’s Coach, Lion’s Regio, Lion’s Star
MAN L/M/F/E 2000 F 2000, L 2000, M 2000
MAN N-Busse ND, NG, NL, NM, NÜ
MAN S-Busse
MAN Sonstige Busse 322/352/402/422/462, RH
MAN TG-Serie TGA 2000 – 0, TGL 2004 – 0, TGM 2004 – 0, TGS 2006 – 0, TGX 2006 – 0
MAN ÜL-Busse ÜL, ÜL Intercity
Neoplan Neoplan Centroliner, Cityliner, Jetliner, Skyliner, Starliner, Tourliner, Trendliner, Trolley
Replaces

Knorr-Bremse

OEM

AE4609

Application

Multibrand

Aspatech New Code

12 0110 007

Weight (g)

675.00

PU Weight

0.80 kg
