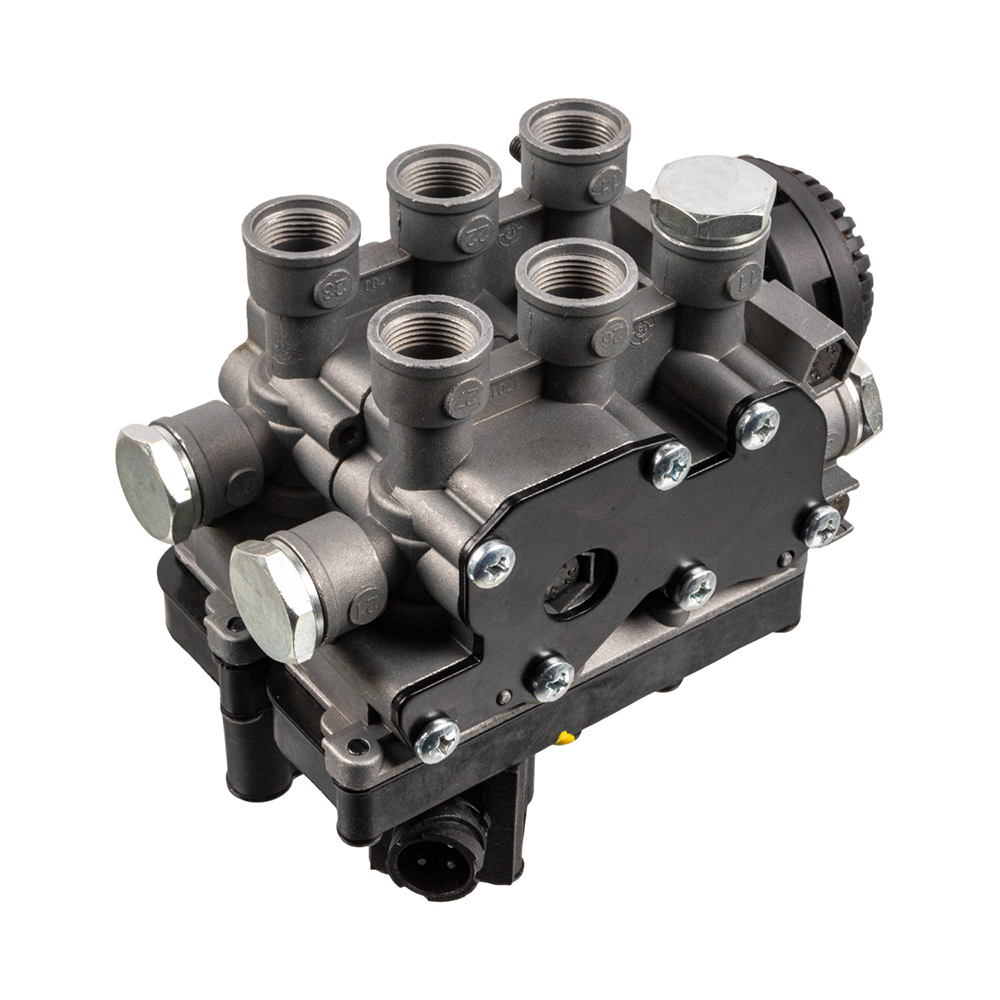

Product Details
| Properties | Data |
| Comments | Valve 1 = 0.32 A, Valve 2 = 0.34 A |
| Electrical connection | Bayonet DIN 72585-A1-4.1-Sn/K2, Bayonet DIN 72585-A1-3.6-Sn/K2 |
| Max. operating pressure | 20.0 bar |
| Mounting | 3 x M8 |
| Multi nominal diameter (from port 1 to x) |
9.8 / 7.0 / 0.6 mm |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 23 | M22 x 1.5 JED – 388 |
| Port thread 26 | M22 x 1.5 JED-388 |
| Port thread 27 | M22 x 1.5 JED-388 |
| Port thread 3 | Silencer 432 407 060 0 |
| Rated current | 320 mA |
| Voltage | 24V |
Comparison Numbers
| Replaces | Referans No | Alternative No |
| ERF | 81259026158 | |
| FUSO (MITSUBISHI) | MK631248 | |
| MAN | 81.25902.6240 | 81259026240 |
| MAN | 81.25902.6158 | 81259026158 |
| NEOPLAN | 81.25902.6240 | 81259026240 |
| SCANIA | 1448080 | |
| SCANIA | 1721022 | |
| Replaces Wabco | 472 880 050 0 | 4728800500 |
Application
| Vehicle Brand | Model, engine, gearbox, axle, cab |
| MAN N-Busse | ND |
| MAN TG-Serie | TGA 2000 – 0, TGM 2004 – 0, TGS 2006 – 0, TGX 2006 – 0 |
