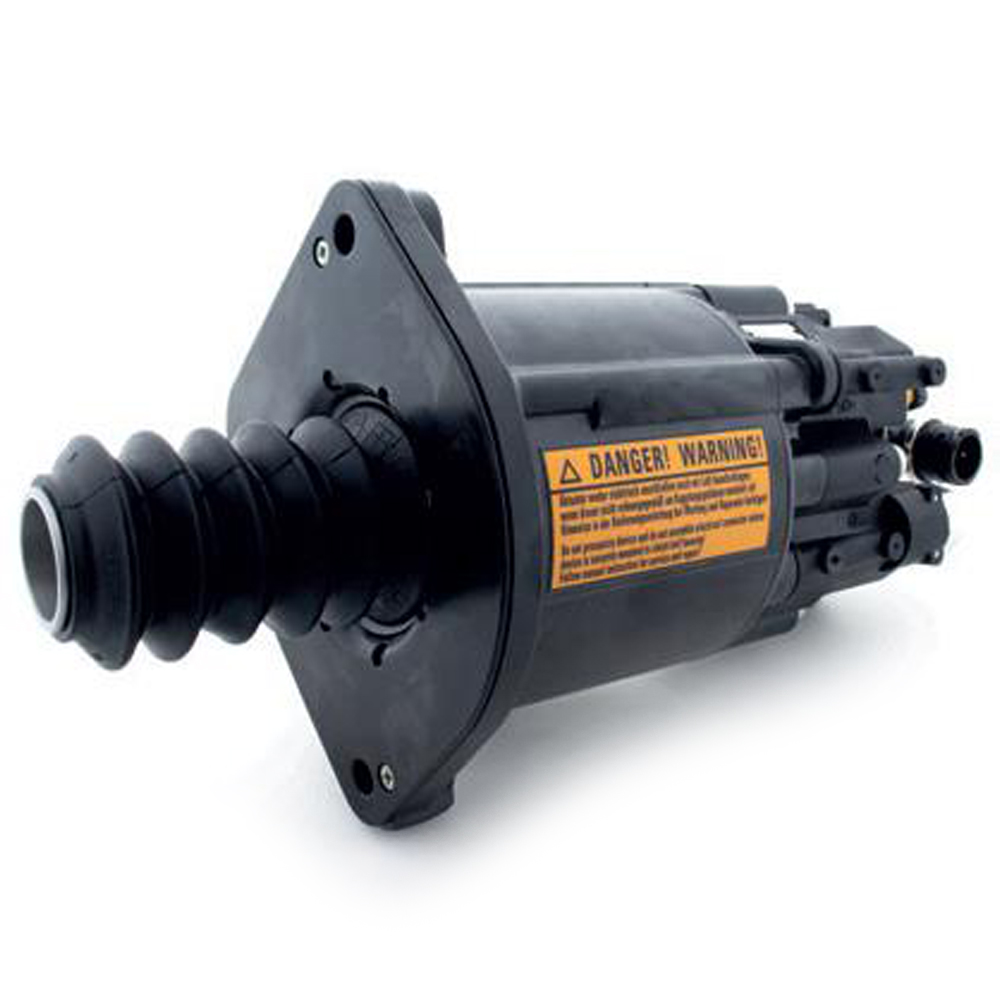

14 0611 017 – Clutch Servo

Replaces Wabco: 970 150 008 0

SKU: 14 0611 017 Category: Tag:

Product Details

Properties Data
Max. operating pressure 8.5 bar
Mounting 2x Ø 11 mm
Output force 7000 N
Port thread 1 M16 x 1.5
Protection class IP 67
Rated current connector 1.5 A
Rated current sensor (A) 0.09 A
Rated current solenoid valve (A) 1.60 A
Stroke 69.5 mm



Comparison Numbers

Replaces Referans No Alternative No
Mercedes-Benz 000 250 0062 0002500062
Mercedes-Benz 000 250 0562 0002500562
Mercedes-Benz A000 250 0062 A0002500062
Mercedes-Benz A000 250 0562 A0002500562
Mercedes-Benz A000 250 1562 A0002501562
ZG ZG.30320-0008 ZG303200008
Fuso (Mitsubishi) MX912186
Replaces Wabco 970 150 008 0 9701500080





Application

Vehicle Brand Model, engine, gearbox, axle, cab
Mercedes-Benz Actros 1 950, 952, 953, 954
Mercedes-Benz Actros 2 930, 932, 933, 934, tbd
Mercedes-Benz Actros 3 930, 932, 933, 934, tbd
Mercedes-Benz Atego 1 950, 952, 953, 954
Mercedes-Benz Axor 374, 375, 940, 942, 943, 944, 950, 952, 953, 954, 958, tbd
Mercedes-Benz Econic 1 957
Mercedes-Benz Zetros 949
Mercedes-Benz Atego 2 tbd
Replaces

Wabco

OEM

970 150 008 0

Application

Mercedes-Benz

For Oe Number

000 250 1562

Aspatech New Code

14 0611 017

Aspatech Old Code

ASP.300.1508.00

Weight (g)

3955.00

PU Weight

4.41 kg
